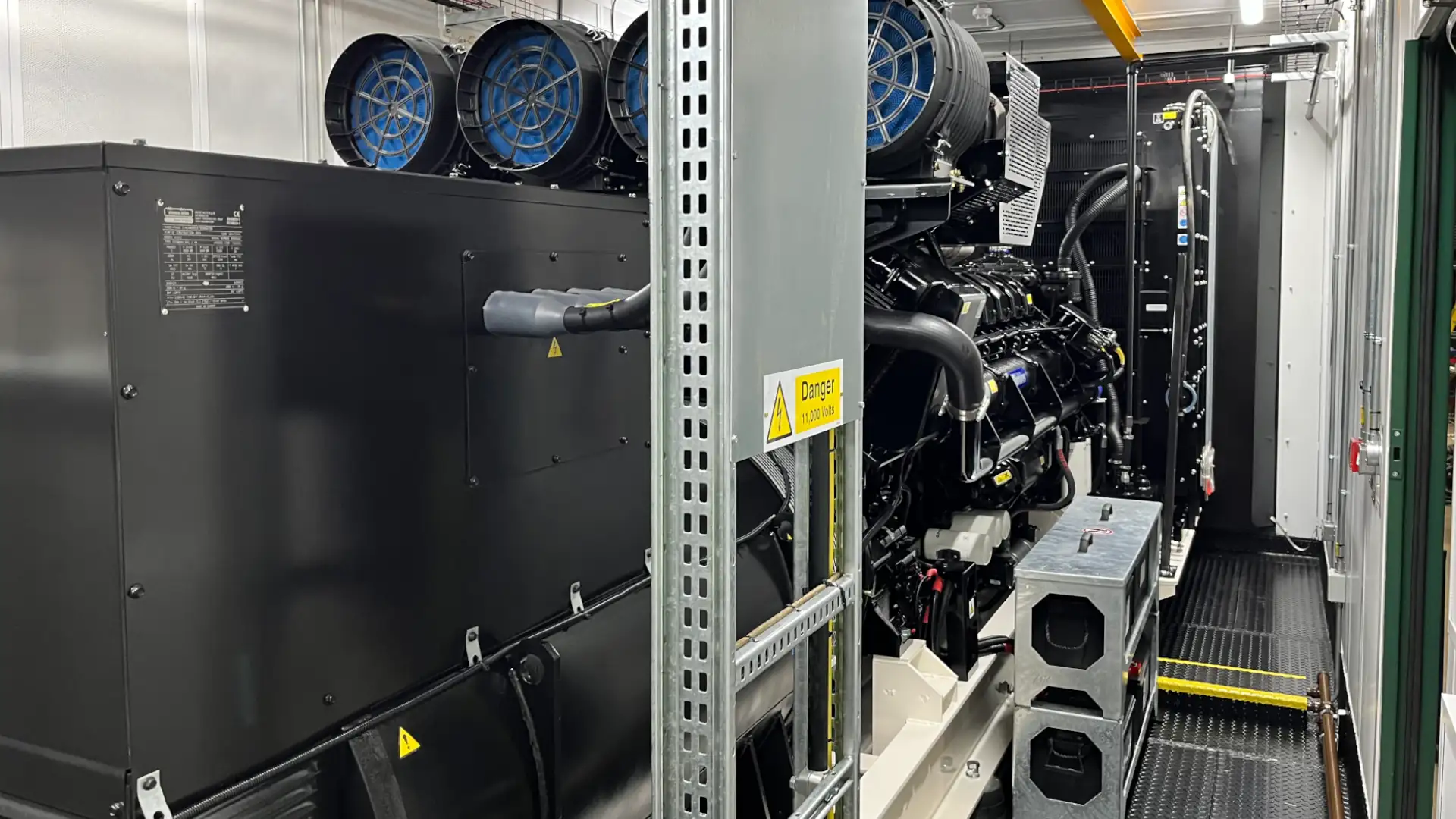

Standby Diesel Generators

Maintain Security of Power

Edina is an experienced EPC contractor specialising in the engineering, installation and asset-care support of standby diesel generation sets ranging from 10kVA to 4MVA suitable for commercial and industrial applications.

Our standby diesel power solutions can support mission-critical infrastructure to maintain the security of your power supply whilst reducing your carbon footprint utilising drop-in Hydrotreated Vegetable Oil (HVO) fuel.

10kVA - 4MVA

EPC Contractor

Flexible Power Opportunities

Low Carbon and Renewable Fuels

What are the benefits of using a Standby Diesel Generator for your Emergency Power application?

Reliable Power Supply

High load step capabilities

High Fuel Efficiency

Low Cost Maintenance

High Durability and Longevity

High Power Output

Scalable Power Solution

johannes-plenio-6XUA5KQ9-1k-unsplash(1)

Hydrotreated Vegetable Oil (HVO) Fuel: Powering a Greener Future

HVO fuel, or Hydrotreated Vegetable Oil, is a renewable diesel made from vegetable oils and animal fats. When used in our range of Standby Diesel Generators it provides a cleaner alternative to conventional diesel and helps reduce your greenhouse gas emissions and promotes your road to sustainability.

Standby Diesel Generator Solutions

With Edina's complete range of LV and HV alternators and world-renowned engines, we can select the most suitable engine and alternator combination to provide continuous, prime, and standby power applications for your specific needs.

We have access to a wide range of diesel engines and alternators from global manufacturers including:

Doosan Logo Iveco Logo Perkins Logo Volvo Penta Logo

John Deere Logo MTU LogoMitsubishi Logoboudouin

Specific applications require the standby generator to accept a high-impact load, e.g., heavy motorised load with minimal voltage and frequency deviations, for example, compliance with Health Service Technical Memorandum (HTM). The correct engine and alternator selection is critical in meeting these requirements.

Edina can offer full synchronising options for bump-less transfer back to the grid after a mains failure.

Standby diesel genset range from 10kVA – 4000kVA at 50Hz. Suitable for commercial and industrial applications only.

Prime Power (kVA) No. of Cylinder & Configuration Displacement (L) Governor Governing Class as per IS0 8528
18
 4 - inline
 2.3
 Electronic G2
23
 4 - inline 2.3
 Electronic G2
32
 4 - inline 2.3
 Electronic G2
45
 4 - inline 2.3
 Electronic G2
65
 4 - inline 4.09
 Electronic G2
80
 4 - inline 4.09
 Electronic G2
100
 4 - inline 4.09
 Electronic G2
135
 6 - inline
 6.75
 Electronic G2
150
 6 - inline 6.75
 Electronic G2
200
 6 - inline 9.726
 Electronic G2
250
 6 - inline 7.47
 Electronic G3
320
 6 - inline 9.7
 Electronic G3
400
 6 - inline 12.54
 Electronic G3
450
 6 - inline 12.54
 ECU G3
500
 6 - inline 12.54
 ECU G3
625
 8 - V
 16.72
 ECU G3
750
 6 - inline
 19.6
 ECU G3
910 8 - V 26.1 ECU G3
1010 12 - V 31.8 ECU G3
1250 12 - V 39.2 ECU G3
1500 12 - V 39.2 ECU G3
1850 16 - V 52.3 ECU G3
2000 16 - V 52.3 ECU G3
2250 20 - V 65.4 ECU G3
2500 12 - V 65.65 ECU G3
2750 12 - V 65.65 ECU G3
3000 16 - V 87.5 ECU G3
3300 16 - V 87.5 ECU G3
3750 16 - V 87.5 ECU G3

Standby Diesel Generation Structure Types

We offer three types of acoustic generator structures ranging from large bespoke engineered ISO containers - suitable for large-scale critical infrastructures, standard close-fit sets above 500MVA applications and canopy generators for small-scale emergency back-up.

Bespoke-containerised-generators-1

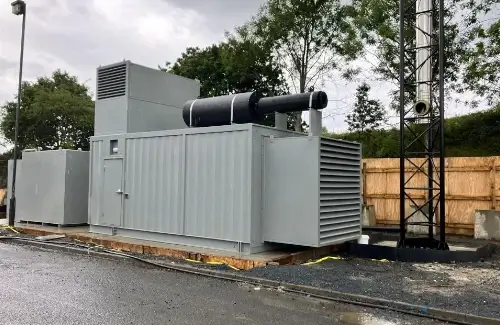

Bespoke Acoustic Walk-In Containerised Generators

Container-generator-1

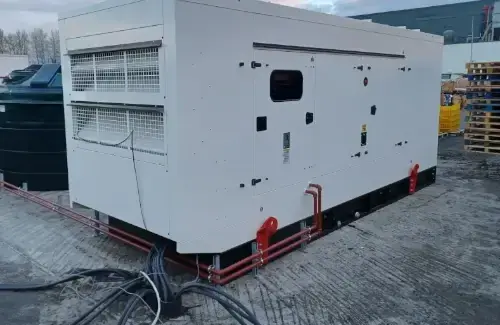

Acoustic Close-Fit Generators

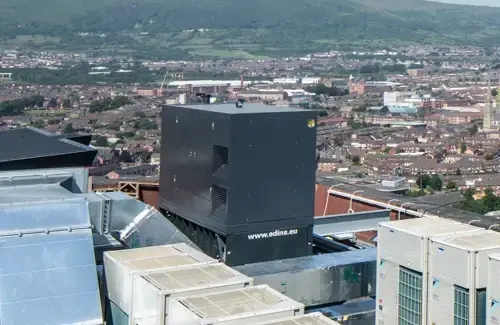

Canopy-Generator-1

Acoustic Canopied Generators

Full Control and Industry Compliance

Full Control

Our control panels are manufactured in-house and are fully compliant with local grid protection regulations such as G99, G10 and EGIP.

Synchronising controls can also provide asset flexibility allowing your standby generator to enter the capacity / Demand Side Unit (DSU) market to realise an additional revenue stream and or to allow routine testing of the generator on load utilising site load rather than a stand-alone load bank.

Environmental Compliance

As part of our standby generator range, we can deliver fuel-efficient engines and emission-optimised versions to meet the most stringent environmental regulations.

Our low noise container options (down to 65dBA at 1m) supplement our packaged range of sets for those noise-sensitive areas.

Sectors

Commercial Buildings

Data_Centre_Compliant_Generator-1

Data Centre Generators

Hospital-1

Healthcare

Pharma-1

Industrial Manufacturing

Apartment_Building-1

Life Safety

utility

Utilities

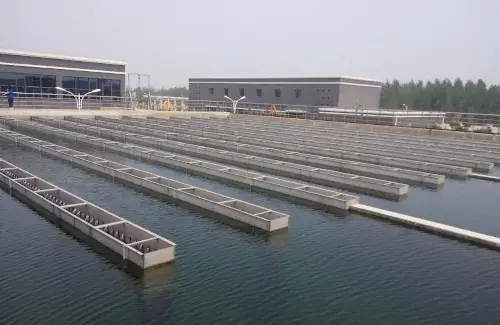

water-treatment

Water Industry

Standby Diesel Generator Maintenance

We are a leading diesel generator service provider for world-renowned diesel manufacturers, delivering reliable and cost-effective service solutions, tailored to suit your requirements.

From load bank and emissions testing to G99/G10 injection testing and full engine rebuilds, we provide the complete package of generator service and maintenance to ensure your on-site security of power supply.

Maintain Your Diesel Generator

service-diesel-generators_500x325

Artboard 1

Ready to Maintain Power Security?

Discover Our Standby Diesel Generator Capabilities
