NOx <500 mg/Nm3 *
Natural Gas Application

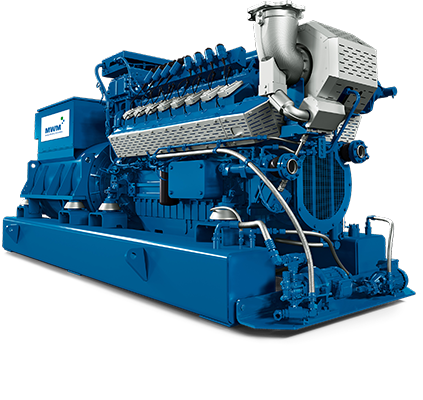

| TCG 3016 |
V08 |
V12 |
V16 |
| Engine type |
50 Hz |
50 Hz |
50 Hz |
| Electrical output |
400kW |
600kW |
800kW |
| Mean effective pressure |
18.9 bar |
18.9 bar |
18.8 bar |
| Thermal output ± 8% |
404kW |
618kW |
821kW |
| Electrical efficiency |
43.1% |
43.3% |
43.5% |
| Thermal efficiency |
43.6% |
44.6% |
44.6% |
| Overall efficiency |
86.7% |
87.9% |
88.1% |
| Power to heat ratio ** |
0.99 |
0.97 |
0.98 |
Biogas, Landfill Gas, and Sewage Gas Application
| TCG 3016 |
V08 |
V12 |
V16 |
| Engine type |
50 Hz |
50 Hz |
50 Hz |
| Electrical output |
400kW |
600kW |
800kW |
| Mean effective pressure |
18.9 bar |
18.9 bar |
18.8 bar |
| Thermal output ± 8% |
394kW |
599kW |
791kW |
| Electrical efficiency |
42.8% |
42.9% |
43.1% |
| Thermal efficiency |
42.2% |
42.8% |
42.6% |
| Overall efficiency |
85.0% |
85.7% |
85.7% |
| Power to heat ratio ** |
1.01 |
1 |
1.01 |
* With 5% O2 and dry exhaust gas
** The power to heat ratio is calculated by dividing the electrical efficiency by the thermal efficiency. Please remember that this is a theoretical value that may deviate from actually measured values.
